The Pressuremeter Test (PMT)
Concept:
The Pressuremeter Test (PMT), is an in-situ geotechnical investigation method used to determine the deformation and strength properties of soil and rock. It involves inserting a cylindrical probe into a pre-drilled borehole and applying radial pressure to expand the probe against the borehole walls. The test measures the soil's response to this pressure, providing information about its stress-strain behavior, elastic modulus, and limit pressure. The Pressuremeter test is widely used in foundation design, slope stability analysis, and earth pressure calculations, adhering to standards such as ASTM D4719.
Descriptions and Procedure
Apparatus Required
- Pressuremeter probe (cylindrical expandable device)
- Control unit with pressure gauges and volume measurement devices
- Hydraulic or pneumatic pump for applying pressure
- Data acquisition system
- Borehole drilling equipment
- Measuring tools for borehole diameter and depth
Procedure
1. Site Preparation
- Selecting Test Location: Choose a test site that accurately represents the area of interest.
- Drilling Borehole: Drill a borehole to the desired depth using standard drilling techniques. Ensure the borehole diameter matches the pressuremeter probe size.
2. Probe Insertion
- Preparing the Probe: Connect the pressuremeter probe to the control unit. Calibrate the equipment to ensure accurate measurements.
- Inserting the Probe: Carefully lower the probe into the borehole to the target test depth. Ensure the probe is centered and not in contact with the borehole walls before starting the test.
3. Testing Procedure
- Initial Pressurization: Apply an initial pressure to expand the probe slightly and ensure proper contact with the borehole walls. This helps to seat the probe and eliminate any gaps.
- Incremental Loading: Gradually increase the pressure in the probe in small increments. Record the corresponding volume changes and pressure readings at each increment.
- Measuring Displacement: Monitor and measure the radial displacement of the borehole walls as the probe expands. Use the data acquisition system to record these measurements continuously.
4. Peak and Limit Pressure
- Identifying Peak Pressure: Continue applying pressure until the soil exhibits significant deformation, indicating the peak pressure point.
- Determining Limit Pressure: Increase the pressure further until the soil cannot sustain any additional load, indicating the limit pressure.
5. Unloading Phase
- Releasing Pressure: Gradually release the pressure in the probe to observe the soil's rebound behavior. Record the pressure and volume changes during unloading.
- Repeating Tests: Repeat the test at different depths if necessary to obtain a profile of soil properties with depth.
Data Interpretation
1. Stress-Strain Behavior
- Plotting Stress-Strain Curve: Plot the applied pressure against the corresponding radial displacement to generate a stress-strain curve for the soil.
- Analyzing Elastic Modulus: Determine the initial elastic modulus (E) from the linear portion of the stress-strain curve.
2. Limit Pressure
- Identifying Limit Pressure: Identify the limit pressure (PL) where the soil exhibits plastic deformation and cannot sustain additional load.
3. Derived Soil Parameters
- Calculating Parameters: Use the test data to calculate other relevant soil parameters such as shear modulus (G) and Poisson's ratio (ν).
- Interpreting Results: Analyze the derived parameters to assess soil strength and deformation characteristics, which are essential for geotechnical design.

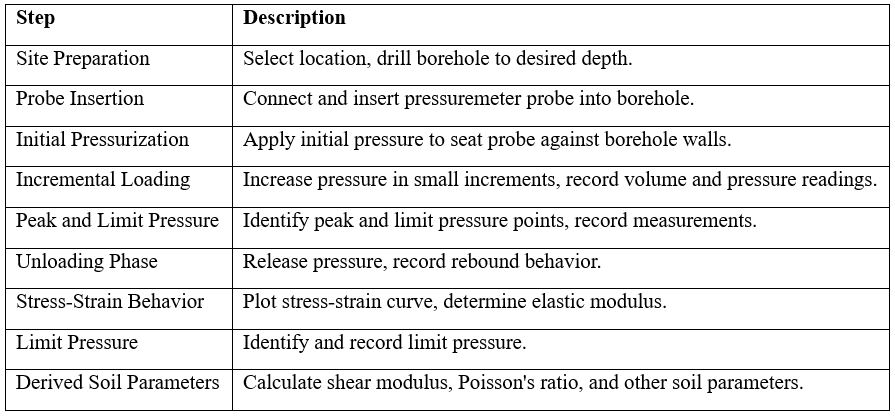

Summary Table
Key Points to Remember
- Purpose: Determine in-situ soil deformation and strength properties.
- Apparatus: Pressuremeter probe, control unit, pump, data acquisition system.
- Procedure: Prepare site, insert probe, apply pressure, record data, analyze results.
- Data Interpretation: Analyze stress-strain behavior, determine elastic modulus and limit pressure.
- Standards: ASTM D4719.
Final Summary
The Pressuremeter Test is a vital in-situ method for evaluating soil and rock deformation and strength properties. It provides critical data for designing stable and safe geotechnical structures, ensuring reliable assessment of subsurface conditions. Proper execution and interpretation of the test yield valuable parameters for geotechnical analysis and design.
