The Constant Head Permeability Test

The constant head permeability test is a common laboratory testing method used to determine the permeability of granular soils like sands and gravels containing little or no silt. This testing method is made for testing reconstituted or disturbed granular soil samples.

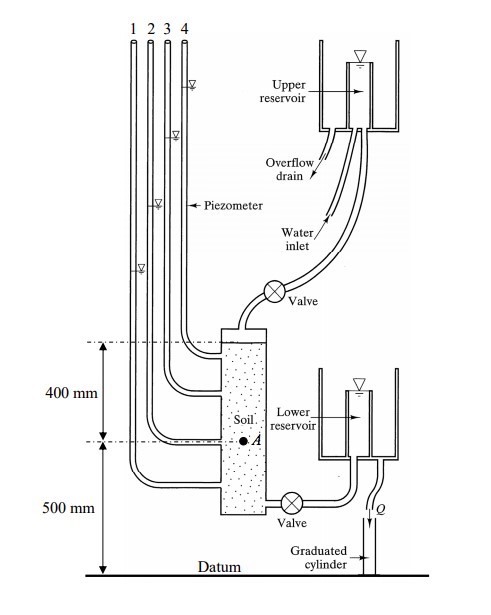

The constant head permeability test involves flow of water through a column of cylindrical soil sample under the constant pressure difference. The test is carried out in the permeability cell, or permeameter, which can vary in size depending on the grain size of the tested material. The soil sample has a cylindrical form with its diameter being large enough to be representative of the tested soil. As a rule of thumb, the ratio of the cell diameter to the largest grain size diameter should be higher than 12 (Head 1982). The usual size of the cell often used for testing common sands is 75 mm diameter and 260 mm height between perforated plates. The testing apparatus is equipped with an adjustable constant head reservoir and an outlet reservoir which allows maintaining a constant head during the test. Water used for testing is de-aired water at constant temperature. The permeability cell is also equipped with a loading piston that can be used to apply constant axial stress to the sample during the test. Before starting the flow measurements, however, the soil sample is saturated. During the test, the amount of water flowing through the soil column is measured for given time intervals.

Knowing the height of the soil sample column L, the sample cross section A, and the constant pressure difference Δh, the volume of passing water Q, and the time interval ΔT, one can calculate the permeability of the sample as

K=QL / (A.Δh.Δt)

The Falling Head Permeability Test

The falling head permeability test is a common laboratory testing method used to determine the permeability of fine-grained soils with intermediate and low permeability such as silts and clays. This testing method can be applied to an undisturbed sample.

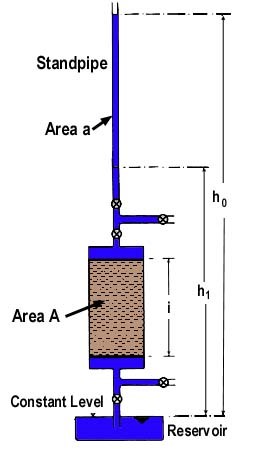

The falling head permeability test involves flow of water through a relatively short soil sample connected to a standpipe which provides the water head and allows measuring the volume of water passing through the sample. The diameter of the standpipe depends on the permeability of the tested soil. The test can be carried out in a Falling Head permeability cell or in an oedometer cell.

Before starting the flow measurements, the soil sample is saturated, and the standpipes are filled with de-aired water to a given level. The test then starts by allowing water to flow through the sample until the water in the standpipe reaches a given lower limit. The time required for the water in the standpipe to drop from the upper to the lower level is recorded. Often, the standpipe is refilled, and the test is repeated a couple of times. The recorded time should be the same for each test within an allowable variation of about 10% (Head 1982) otherwise the test is failed.

Based on the test results, the permeability of the sample can be calculated as

K=[2.3 a.L / (A.Δt)].Log(hU / hL)

in which we have
